Peradon Timesafe ADM Light Meter

CGQ Snooker & Pools Price: Contact CGQ Snooker for our best price POA
Loading Loading
Make an EnquiryPeradon Timesafe ADM Light Meter

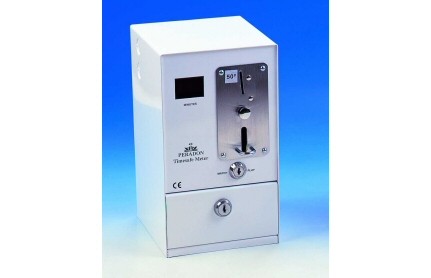

Peradon Timesafe ADM Light Meter

Accumulative single coin 1kVA light meter in robust metal casing.

This single coin light meter will accept one type of coin only, but you can choose which coin mechanism it is supplied with (10p, 20p, 50p, £1, Peradon Token or 1 Euro).

The light time you require per coin can be programmed by using small switches inside the meter.

This is an accumulative meter, meaning that it is possible to insert further coins into the meter when the light is on and the light time on the digital diplay will accumulate.

Incorrect coins can be rejected from the coin mechanism by pressing the reject button on the facia.

This meter also features a matchplay key override facility, so that coins do not have to be inserted during tournaments.

Power consumption of the timer is approximately 10W (at 230V AC). Loads of up to 1kVA (3A resistive) can be switched directly by the timer.

  • Fuses: Type T HBC 250V breaking capacity, 20 x 5mm, FS1 500mA
  • Time Intervals: 1 to 63 Minutes, in 1 minute increments
  • Display: 0.6 inch high red LED
  • Coin: Accepts one coin type only (either 10p, 20p, 50p, £1, Peradon Token or 1 Euro)
  • Dimensions: H: 250mm W: 145mm D: 150mm
  • Weight: 3.75kg
  • Case: Mild steel
  • Lock: Radial 8 pin with two keys
  • Cash Box Capacity: Approx 300 coins
