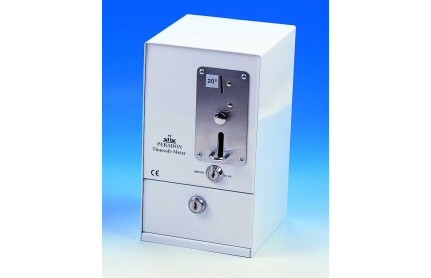

Peradon Timesafe SCT Light Meter

CGQ Snooker & Pools Price: Contact CGQ Snooker for our best price POA
Loading Loading
Make an EnquiryPeradon Timesafe SCT Light Meter



Peradon Timesafe SCT Light Meter

Non accumulative single coin 1kVA light meter in robust metal casing.

This single coin light meter will accept one type of coin only, but you can choose which coin mechanism it is supplied with (10p, 20p, 50p, £1, Peradon Token or 1 Euro).

The light time you require per coin can be programmed by using small switches inside the meter.

This is a non-accumulative meter, meaning that it is not possible to insert further coins into the meter when the light is on (a bar inside the coin mechanism prevents this). Only when the lighting time has elapsed can further coins be inserted.

Incorrect coins can be rejected from the coin mechanism by pressing the reject button on the facia.

This meter also features a matchplay key override facility, so that coins do not have to be inserted during tournaments.

Power consumption of the timer is approximately 10W (at 230V AC). Loads of up to 1kVA (3A resistive) can be switched directly by the timer.

  • Fuses: Type T HBC 250V breaking capacity, 20 x 5mm, FS1 500mA
  • Time Intervals: 1 to 63 Minutes, in 1 minute increments
  • Display: No display
  • Coin: Accepts one coin type only (either 10p, 20p, 50p, £1, Peradon Token or 1 Euro)
  • Dimensions: H: 250mm W: 145mm D: 150mm
  • Weight: 3.75kg
  • Case: Mild steel
  • Lock: Radial 8 pin with two keys
  • Cash Box Capacity: Approx 300 coins

Please Note: This product should be installed by a qualified electrician.
